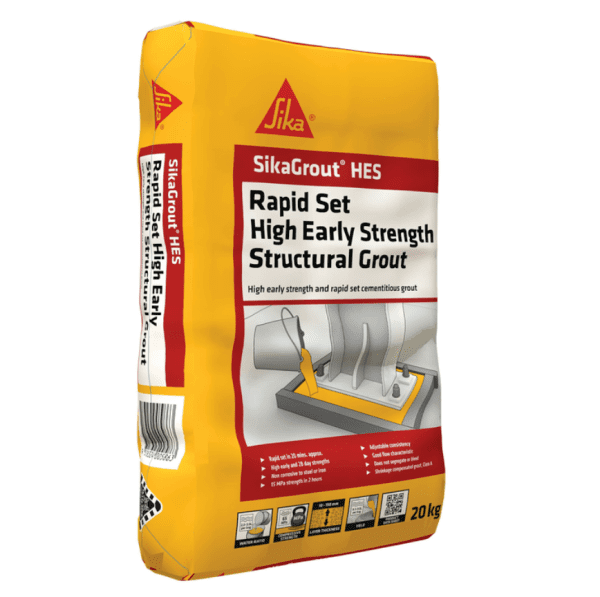

SikaGrout HES – 20kg

MIXING

Equipment:
SikaGrout® HES must be mixed using a mechanical grout mixer or a suitable drum mixer. The grout mixer will reduce the mix becoming lumpy or aerated.  Smaller quantities should be mixed in a clean drum using an electric drill. i.e. Festo or similar spiral mixer at a speed of approximately 500RPM. DO NOT MIX BY HAND or MIX PART BAGS.

Method:
Add approx. 70% of water to 20kg pail, slowly add powder while mixing to wet out product fully, add remaining water at a steady rate while continuing to mix. Continue to mix for an additional 3-5 mins. Do not add more water to increase flow if material has stiffened due to time delays on resting, remixing can reactivate. If grout is unworkable discard.

APPLICATION

SikaGrout® HES can be placed by gravity flow or by pump. It is essential that proper placing is completed without problems. Sufficient labour, grout and equipment must be present to ensure continuous placement.
Gravity Flow:
Mixed grout should be poured one side of the void to avoid air entrapment. Grout is best poured over short distances to ensure this. Use a suitable header box, maintaining the grout head at all times to ensure continuous flow. To facilitate grout compaction and top plate contact, use rodding, tamping or flexible strapping in short strokes while maintaining an adequate head of grout.
Do not vibrate as this will cause segregation. Any adjacent machinery or equipment causing vibration should be shut down until initial set.
Pumping:
When pumping SikaGrout® HES, ensure the pump is suitable for the grout consistency and for the distance and height it is to be pumped. A positive displacement pump is recommended. Place grout by pumping into the farthest corner, filling the space gradually. Ensure that air is not entrapped under the base plate.
Placement Thickness:
Minimum thickness is 10 mm. Maximum thickness in one pass is 150 mm. Any grout pour that exceeds this should be done in stages, or have stone aggregate added to it, to reduce the exothermic heat.
Aggregate Addition:
Coarse aggregate can be added to mixed SikaGrout® HES to achieve a stronger grout, to increase the thickness of grout placed in one pass, or to increase yield.
It is recommended that aggregate size be 10 mm, however as a guide the maximum aggregate size should not be more than 1/5 of the thickness of the section to be cast.
The aggregate shape, and the quantity added, will effect the workability of the mix. Smooth rounded aggregate is found to produce the most workable mix. The recommended maximum aggregate addition rate is 20kg per 20kg bag of SikaGrout® HES. The other option will be to add SikaGrout Aggregate to the mix to increase the thickness of the grout placed.

CURING TREATMENT

Suitable curing methods such as plastic sheet, wet hessian, curing compounds (eg, Sika Film for initial placement then Sika Antisol curing compoundsafter initial set) etc. must be used to protect the freshly applied grout from the drying effects of sun and wind. Curing must commence immediately after placement, and continue for at least 7 days. Curing is vital to the ultimate performance of grout as it allows optimum strength development and ensures tight contact with the baseplate.
